Psychic montage kit Japanse MX motoren

THIS KIT ALLOWS YOU TO REPLACE ALL THEM WORN RADIATOR MOUNTS TO STOP VIBRATION AND DAMAGE

-Yamaha, Honda, Kawasaki, Suzuki.

TO YOUR RADS.

CUSHION ANTI-VIBRATION RUBBER RADIATOR MOUNTING GROMMET KIT FOR JAPANESE DIRT BIKES AND

SOME ATVS/STREET MODELS.

ALL COMPONENTS MADE TO OEM SPECIFICATIONS OR BETTER.

STEEL COMPONENTS ARE ALL BRIGHT SILVER FINISH BZP.

RUBBERS ARE ALSO USED IN MOUTHING SIDE PANELS AND FAIRINGS, SPEEDOS AND LIGHT CLUSTERS,

TANKS, SEATS, MUDGUARDS, EXPANSION TANKS.

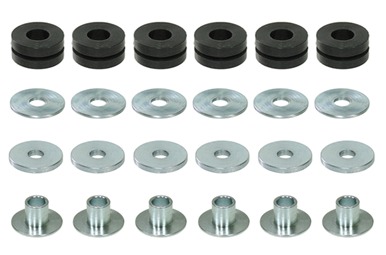

UP-10031

RUBBER BUSHING X 6PCS , STEEL BUSHING X 6PCS ,

WASHER X 12PCS

SPECIFICATION: RUBBER BUSHING X 6PCS

(24PCS/KIT) STEEL BUSHING X 6PCS

3MM WASHER X 6PCS

1.5MM WASHER X 6PCS

*RUBBER BUSHING

I.D: 10MM

O.D: 22MM

INNER WIDTH: 2.5MM

T: 12MM(+/-0.3MM)

HARDNESS: 60

*STEEL BUSHING

I.D: 7MM

O.D: 10MM / 22MM

H: 1.5MM / 13.5MM

*3MM WASHER

I.D: 6.5MM

O.D: 22MM

T: 3MM

*1.5MM WASHER

I.D: 6.5MM

O.D: 22MM

T: 1.5MM

MATERIAL: RUBBER BUSHING – SILICON

STEEL BUSHING – STEEL (C1008)

3MM WASHER – STEEL(SPCC)

1.5MM WASHER – STEEL(SPCC)

CROSS REFERENCE NUMBERS ONLY:

92027-194, 92075-209, 19052MAC680, 19051KA3830, 90403KA3830, 90387-06065, 90480-15528, 90201-06571,

09180-06243, 17787-19400, UP-10031, 08-0090.KIT
