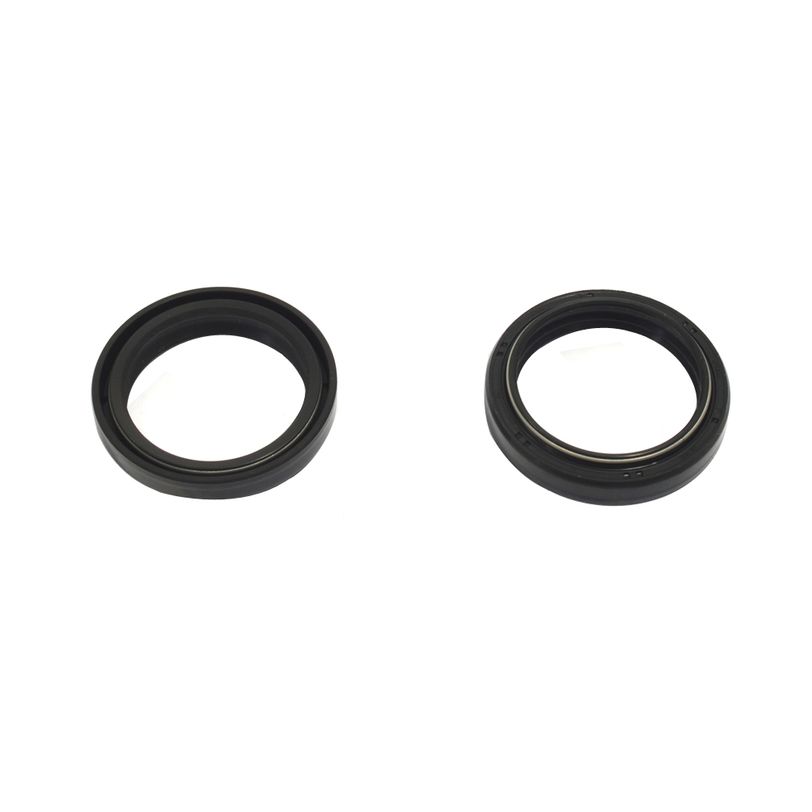

Athena voorvork olie keerring set 41x53x8/10,5 mm

FORK OIL SEAL KIT

Technical features

External Diameter (mm) 53

Height 8

Internal Diameter (mm) 41

Material Rubber

Net Weight (Kg) 0.056

Oil Seal Structure Double seal lip

Oil Seal Total Height (mm) 10.5

OEM Codes

Partner OEM code

GILERA 599267

HONDA 51490MCKA01

KAWASAKI 920491494

KAWASAKI 920490073

PIAGGIO 599267

SUZUKI 5115314F00000

SUZUKI 5115310G50000

YAMAHA 4EB231450100

Vehicle compatibility

APRILIA SRV 850 cc 2012/2014

GILERA GP 800 cc 2008/2010

GILERA NEXUS 500 cc 2003/2009

GILERA NEXUS EU3 500 cc 2009/2011

GILERA NEXUS SP EURO 3 500 cc 2003/2009

HONDA VT C2 SHADOW SABRE 1100 cc 2003/2006

KAWASAKI EN A/B/C VULCAN LTD 500 cc 2003

KAWASAKI ER-6F ABS 650 cc 2006/2016

KAWASAKI ER-6N ABS 650 cc 2006/2016

KAWASAKI GTR 1000 cc 2003

KAWASAKI NINJA R (USA 650 cc 2006/2012

KAWASAKI VULCAN S 650 cc 2015/2019

KAWASAKI Z ABS 800 cc 2013/2016

KAWASAKI ZR-7 F1-F3/S H1 750 cc 1999/2003

KAWASAKI Z S/R 750 cc 2004/2012

PIAGGIO BEVERLY 500 cc 2004/2006

PIAGGIO BEVERLY CRUISER 500 cc 2007/2012

PIAGGIO BEVERLY EURO3 400 cc 2006/2007

PIAGGIO BEVERLY EURO3 500 cc 2004/2006

PIAGGIO BEVERLY TOURER EURO3 400 cc 2008/2010

SUZUKI AN BURGMAN 400 cc 2007/2016

SUZUKI AN BURGMAN 400 cc 2018

SUZUKI AN BURGMAN 650 cc 2003/2016

SUZUKI AN BURGMAN 650 cc 2018

SUZUKI GSF BANDIT / S 650 cc 2007/2012

SUZUKI GSR 750 cc 2011/2013

SUZUKI GSX F 650 cc 2008/2012

SUZUKI VZ INTRUDER 800 cc 2005/2011

YAMAHA BOLT 950 cc 2014/2015

YAMAHA FJ 09 850 cc 2015

YAMAHA FZS FAZER 600 cc 2002/2003

YAMAHA MT-07 700 cc 2014/2019

YAMAHA MT-09 850 cc 2014/2019

YAMAHA TRACER 700 cc 2016/2018

YAMAHA WR125 R 125 cc 2009/2014

YAMAHA XP T-MAX 530 cc 2015/2019

YAMAHA XVS 650 cc 1998/2006

YAMAHA XVS A MIDNIGHT STAR 950 cc 2009/2015

YAMAHA XVS DRAG STAR / A CLASSIC 1100 cc 2000/2006

YAMAHA XVS STAR CLASSIC / CUSTOM / SILVERADO 650 cc 2006/2015

YAMAHA XVS V STAR / V STAR TOURER 1300 cc 2007/2012

YAMAHA XV WARRIOR 1700 cc 2003/2010

YAMAHA YP MAJESTY /ABS 400 cc 2004/2013

YAMAHA YZF R1 1000 cc 1998/2001

YAMAHA YZF R46 600 cc 2005

YAMAHA YZF-R6 600 cc 2016
